How does a rectangular pipe jacking machine maintain stability during tunnelling?

2026-07-25 11:38:39

Rectangular Pipe Jacking technology has gained widespread adoption in urban underground construction due to its superior spatial utilization, reduced surface disruption, and minimal impact on existing infrastructure. However, maintaining stability during tunnelling presents significant engineering challenges that distinguish rectangular machines from their circular counterparts. The non-circular cross-section creates uneven stress distributions, complex soil-machine interactions, and heightened risks of attitude deviations that can compromise both construction quality and operational safety. Understanding how Rectangular Pipe Jacking Machines maintain stability requires a comprehensive examination of mechanical design principles, real-time control systems, ground support mechanisms, and adaptive operational strategies.

The Fundamental Challenge of Rectangular Geometry

The rectangular shape inherently introduces stability challenges that are less pronounced in circular tunnelling. Unlike circular machines, where radial symmetry ensures uniform load distribution, rectangular machines experience asymmetric soil pressures across their flat surfaces. The side walls are subjected to higher lateral earth pressures compared to the crown and invert, creating bending moments that can induce structural deformation and attitude deviations. The sharp corners of the rectangular profile concentrate stress, making the machine more susceptible to localized ground failure and requiring specialized design features to maintain stability.

Furthermore, the high width-to-height ratio common in many rectangular pipe jacking applications makes the machine prone to rolling, as uneven ground pressure on either side of the machine head can induce rotational movement. This rolling tendency is particularly problematic during close-fit construction of twin tunnels, where precise alignment between adjacent tunnels must be maintained within centimeters. The machine's elongated shape also creates significant pressure differentials between the top and bottom of the excavation face, contributing to the risk of "nose diving" or "pitch" deviations.

Structural Design for Stability

Frame and Shell Rigidity

The foundation of stability lies in the structural design of the machine itself. Rectangular Pipe Jacking Machines are constructed from high-strength steel frames that provide the necessary rigidity to resist deformation under asymmetric loading conditions. The cab shell or mainframe incorporates longitudinal beams, cross members, and connecting sheet metal parts engineered to maintain geometric integrity throughout the jacking process. This structural robustness ensures that the machine maintains its rectangular profile even when subjected to uneven soil pressures, preventing localized buckling or excessive deflection that could compromise tunnelling accuracy.

Multi-Cutterhead Configuration

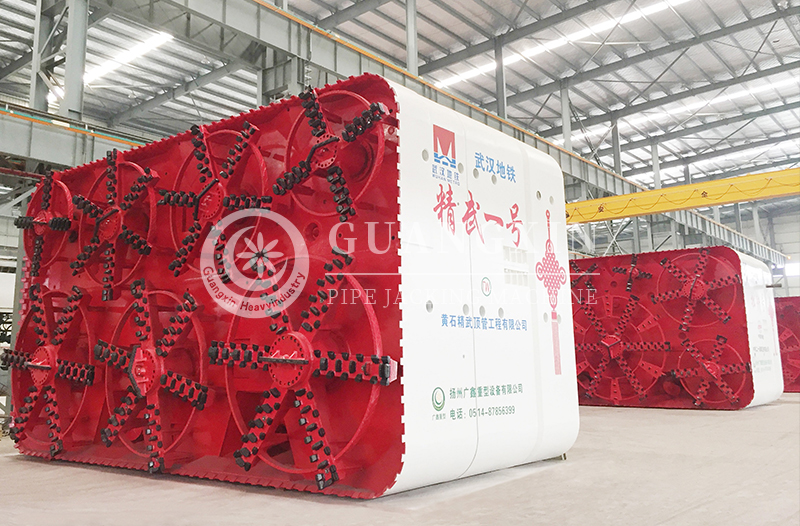

Modern rectangular pipe jacking machines employ multiple cutterheads arranged in patterns that optimize face coverage while minimizing blind zones where soil remains uncut. For instance, machines like those used in the Shasan station project feature 14 cutterheads symmetrically arranged about the central axis, achieving over 90 percent excavation coverage. This configuration distributes cutting forces more evenly across the excavation face, reducing localized stress concentrations that could destabilize the machine. The independent control of each cutterhead's rotation direction allows operators to generate corrective torque when needed, counteracting rolling tendencies by rotating cutterheads on one side in the same direction to create balancing forces.

Anti-Rolling and Anti-Dive Devices

Specialized mechanical devices are often incorporated to counteract the inherent instability of rectangular machines. One notable innovation is the tie rod device, which connects the machine tail to the first several pipe segments. This arrangement locks the segments together, eliminating the rolling tendency of the rectangular machine while also preventing nose diving. The tie rod system typically includes pre-embedded steel plates, reinforcement ribs, and high-strength threaded rods that distribute restraining forces evenly around the machine's perimeter. By creating a rigid connection between the machine and the installed pipe string, this device effectively resists both rotational and vertical attitude deviations.

Ground Support and Face Stability

Earth Pressure Balance Principle

Many rectangular pipe jacking machines maintain face stability through the Earth Pressure Balance (EPB) principle. In this system, the cutterhead excavates soil into a sealed pressure chamber, where the excavated material accumulates and creates a counter-pressure against the excavation face. The operator controls the pressure by adjusting the screw conveyor speed, which removes material from the chamber at a precisely regulated rate. This interaction prevents overloading within the pressure chamber while ensuring that the internal pressure continuously counterbalances the external earth and groundwater pressures.

The EPB system is particularly effective in soft ground conditions where the excavated soil possesses natural plasticity. When the natural soil lacks sufficient cohesiveness, conditioning agents such as foam, polymers, or bentonite are injected into the chamber to improve the soil's workability and pressure-transmitting capability. This conditioning transforms the excavated material into a paste-like consistency that can effectively maintain uniform pressure across the excavation face, preventing both excessive ground loss and surface heave.

Multi-Screw Conveyor Systems

To enhance stability control in large-section rectangular machines, designers have developed multi-screw conveyor systems that provide independent pressure management in different zones of the excavation chamber. The Shasan station machine, for example, featured four sets of independently controllable screw conveyor spoil removal systems, with two sets each for the upper and lower sub-machines. By regulating the direction and speed of different screw conveyors, operators can adjust the distribution of soil pressure within the chamber, aiding in corrective adjustments of the machine head's direction. This zoned pressure control is essential for managing the asymmetric stress distributions characteristic of rectangular tunnelling.

Slurry Balance Alternative

In ground conditions with high permeability or significant groundwater pressure, slurry balance systems offer an alternative approach to face stability. These systems inject pressurized bentonite-based slurry into the excavation chamber, creating a stabilizing membrane against the tunnel face that prevents collapse and controls groundwater infiltration. The continuous circulation of slurry provides effective support while simultaneously transporting excavated material to the surface through a closed-loop system. The pressure of the slurry is carefully regulated to match the combined earth and water pressures at the tunnel face, ensuring balanced conditions that prevent both face collapse and surface heave.

Real-Time Attitude Monitoring and Control

Laser Guidance Systems

Accurate real-time monitoring of machine position and orientation is fundamental to maintaining stability during tunnelling. Modern rectangular pipe jacking machines employ sophisticated guidance systems that provide continuous feedback on the machine's attitude relative to the designed tunnel axis. A laser theodolite installed at a stable reference point behind the launching shaft emits a laser beam parallel to the design centerline. A dual-screen laser target mounted on the machine captures the angle between the target and the laser in real time, providing data on horizontal and vertical deviations at both the cutting face and the machine tail.

This information, combined with pitch angle measurements from high-precision inclinometers, is displayed on the operator's control interface, enabling immediate corrective action when deviations are detected. The guidance system also incorporates gyroscopes and automated target tracking to maintain alignment with millimeter-level accuracy. The combination of laser and inertial measurement technologies ensures that operators have a comprehensive understanding of the machine's spatial orientation at all times.

Close-Fit Spacing Detection

For twin-tunnel projects where close-fit construction is required, specialized spacing detection devices are essential for maintaining stability between adjacent tunnels. In the Shasan station project, four sets of close-fit construction spacing measurement devices were arranged on both the front and rear shields. When the machine is stationary, distance detectors measure the gap between the two tunnels, ensuring that the clear distance remains within the specified tolerance of 5 to 10 centimeters. This real-time monitoring prevents collisions between adjacent tunnels while ensuring that the final structure meets design requirements.

Digital Twin Integration

Emerging technologies are further enhancing attitude control capabilities. Recent research has demonstrated the effectiveness of mechanics-informed digital twin frameworks that integrate real-time construction data with theoretical load models to predict attitude-related moments and provide reliable guidance for trajectory corrections. These systems process diverse data from construction operations, issue immediate risk alerts, and suggest corrective forces derived from analytical models of soil-machine interaction. By enabling parallel deduction and intelligent decision-making, digital twin approaches minimize trajectory deviation and enhance construction safety and efficiency.

Corrective Measures for Attitude Deviations

Hydraulic Cylinder Adjustment

The primary means of correcting attitude deviations involves adjusting the hydraulic cylinders that control machine articulation and propulsion. Rectangular pipe jacking machines are equipped with multiple sets of hinged hydraulic cylinders and main push cylinders that can be independently controlled. By varying the stroke differences between upper and lower cylinders, operators can correct pitch deviations, while differential strokes between left and right cylinders address yaw deviations. The precise control of these cylinders allows for continuous fine-tuning of the machine's attitude during advancement, preventing small deviations from accumulating into significant trajectory errors.

Selective Jacking Force Distribution

Dynamic control of individual jacking forces represents another important corrective strategy. In large-section rectangular machines, the jacking system typically comprises multiple cylinders arranged in groups that can be independently controlled. By adjusting the thrust applied by different cylinder groups, operators can create steering moments that correct the machine's heading. This approach is particularly effective in heterogeneous ground conditions where asymmetric resistance would otherwise cause the machine to deviate from its intended path.

Cutterhead Rotation Control

The independent control of cutterhead rotation direction and speed provides additional corrective capability. During normal advancement, cutterheads on opposite sides of the machine rotate in opposite directions to balance soil reactive forces. When corrective action is required, operators can rotate all cutterheads in the same direction to generate torque that counteracts rolling deviations. This technique allows for real-time correction without interrupting the excavation process, maintaining productivity while ensuring stability.

Earth Pressure Adjustment

Adjusting the distribution of earth pressure within the excavation chamber is another powerful corrective tool. By regulating the speed of individual screw conveyors or the injection rate of conditioning agents, operators can create intentional pressure gradients that steer the machine in the desired direction. This method is particularly useful for correcting horizontal deviations, as differential side pressures create turning moments that realign the machine with the design axis.

Lubrication and Friction Management

Friction-Reducing Slurry Injection

Reducing friction between the machine, the pipe string, and the surrounding soil is essential for maintaining stable advancement. Excessive friction increases the jacking force required for propulsion, which can induce structural stresses and compromise attitude control. To address this challenge, rectangular pipe jacking machines inject friction-reducing slurry through strategically positioned ports around the machine's perimeter. Each pipe segment typically features multiple injection holes that distribute lubricating slurry around the exterior, forming a continuous lubricating sleeve that changes the frictional contact from pipe-soil to pipe-slurry-soil.

Anti-Carrying Soil Measures

Shallow rectangular pipe jacking machines are particularly susceptible to the "carrying soil effect," where friction between the machine and the overlying soil causes the ground to move forward with the machine, resulting in soil heave ahead of the excavation face and settlement behind it. This phenomenon can destabilize the machine by creating uneven support conditions and inducing unexpected attitude changes. To mitigate this effect, friction-reducing slurry injection holes are arranged around both the front and rear shields, and an appropriate amount of slurry is injected before each advancement cycle to diminish soil-machine friction.

The maintenance of stability during rectangular pipe jacking tunnelling requires a comprehensive and integrated approach that addresses the unique challenges posed by non-circular geometry. Through robust structural design, sophisticated ground support systems, real-time attitude monitoring, and adaptive corrective measures, modern rectangular pipe jacking machines can achieve the precise control necessary for successful underground construction.

The combination of multi-cutterhead configurations, anti-rolling devices, and multi-screw conveyor systems provides the mechanical foundation for stability, while laser guidance and digital twin technologies enable continuous monitoring and intelligent control. Lubrication systems and friction management techniques further enhance stability by reducing the forces that can induce deviation. As underground construction continues to demand larger sections, tighter spaces, and more challenging ground conditions, the ongoing development of stability control technologies will remain central to the advancement of rectangular pipe jacking methods.

The successful implementation of these technologies in major projects around the world demonstrates that rectangular pipe jacking can achieve the precision and reliability required for modern urban infrastructure, even under the most demanding conditions. By integrating engineering innovation with operational expertise, the industry continues to push the boundaries of what is possible in trenchless construction.
